Bedrooms:

Bathrooms:

Total Living Area:

     Main Floor:

     Basement:

Width:

Depth:

Garage Bays:

Additional Details & Options:

What's included in the set:

• Cover sheet: A rendering of the residence will be shown in addition to general notes and information pertaining to the plan.

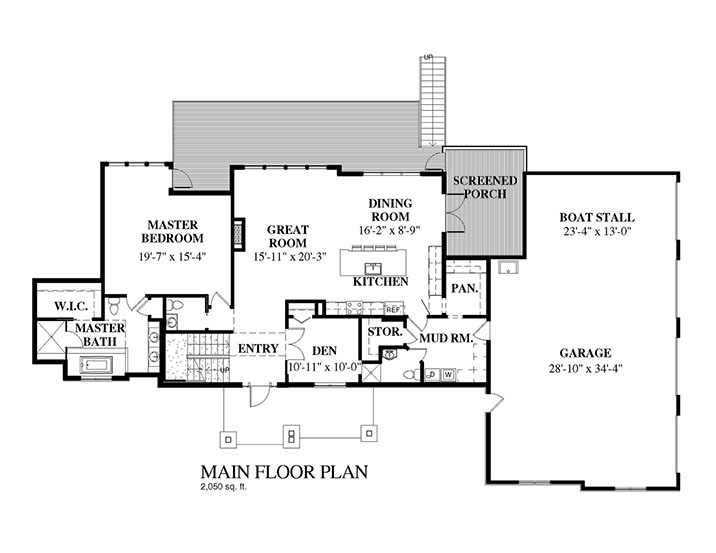

• Floor Plans: Generally each plan will be shown at 1/4" scale, fully dimensioned and noted.

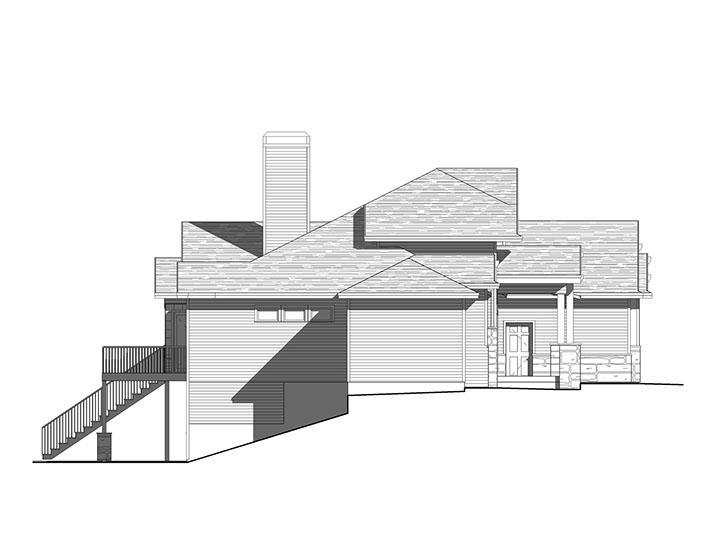

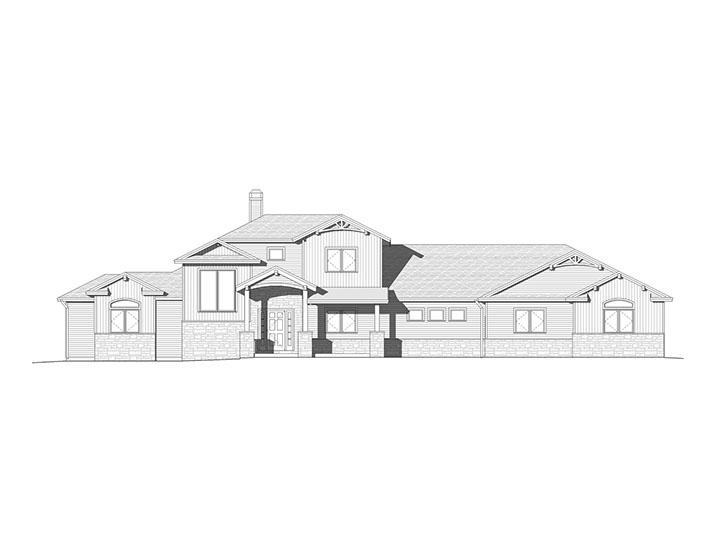

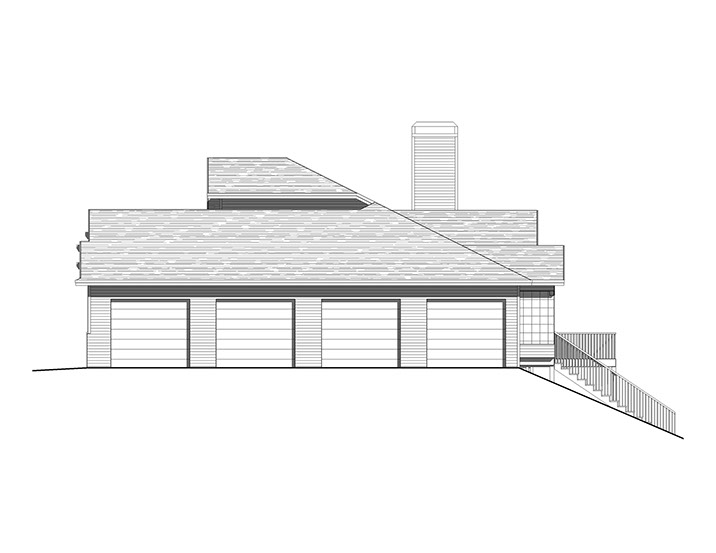

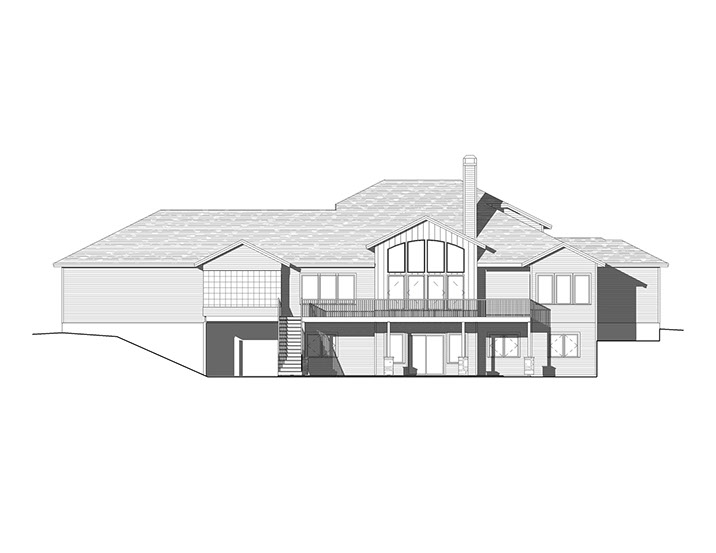

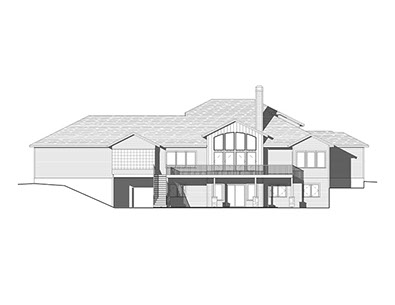

• Exterior Elevations: All exterior elevations noted with roof slopes and general materials.
• Roof Plan: Birds-eye roof plan showing overhang's, hips, valleys & general roof notes
• Sections/Details: Each set will include a typical wall detail, stair sections (if applicable), and any special details pertaining to the plan.
• Door & window schedule:
• Misc.: Interior elevations, cabinet layouts & any other special conditions details if applicable.
• Electrical: A basic electrical plan for each finished living area.

4-5

3

3,722

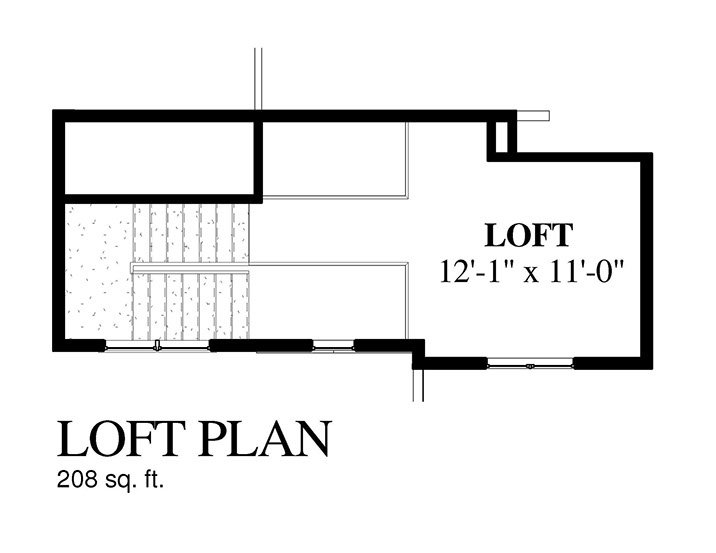

2,050     Loft: 208

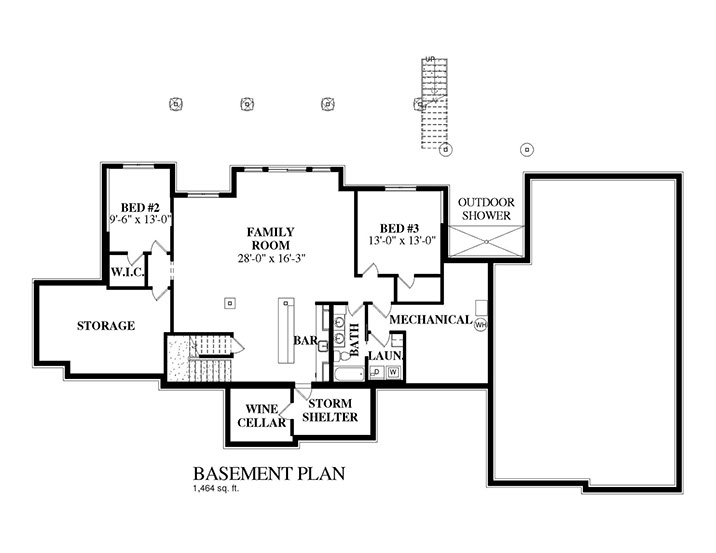

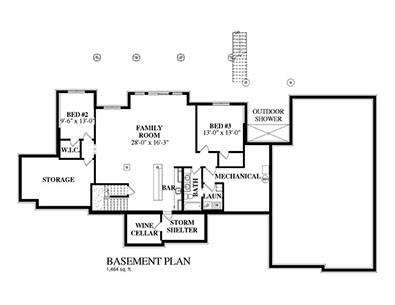

1,464

99'-9"

53'-0"

4

Main level master bedroom, open floor plan, main level laundry, loft/bedroom, screened porch, outdoor shower, + lower laundry.
