Bedrooms:

Bathrooms:

Total Living Area:

     Main Floor:

     Basement:

Width:

Depth:

Garage Bays:

Additional Details & Options:

What's included in the set:

• Cover sheet: A rendering of the residence will be shown in addition to general notes and information pertaining to the plan.

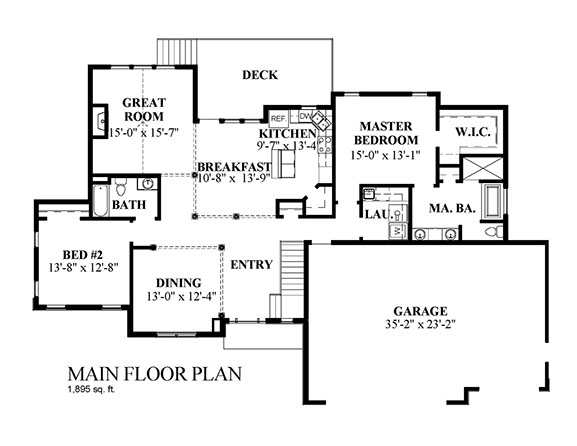

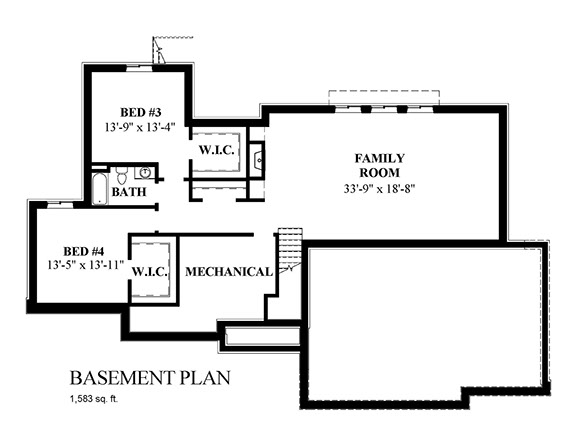

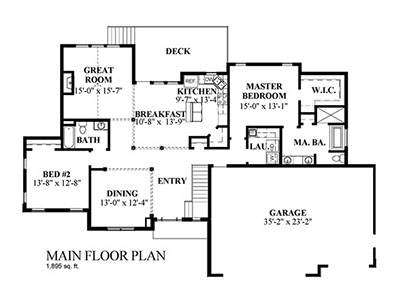

• Floor Plans: Generally each plan will be shown at 1/4" scale, fully dimensioned and noted.

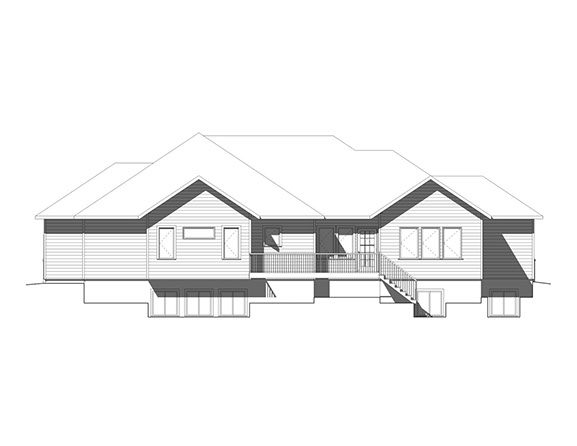

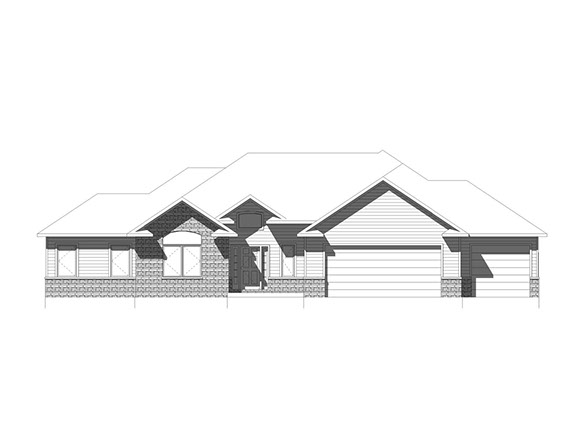

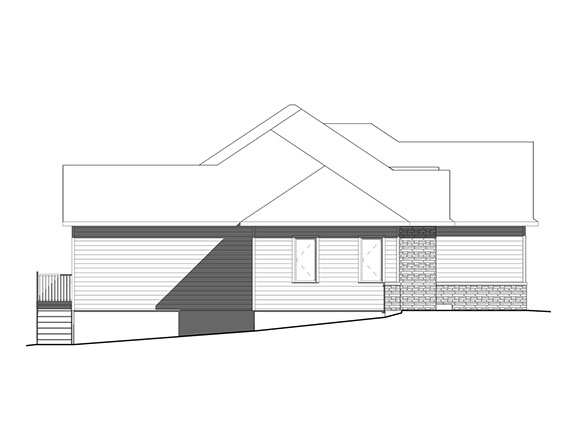

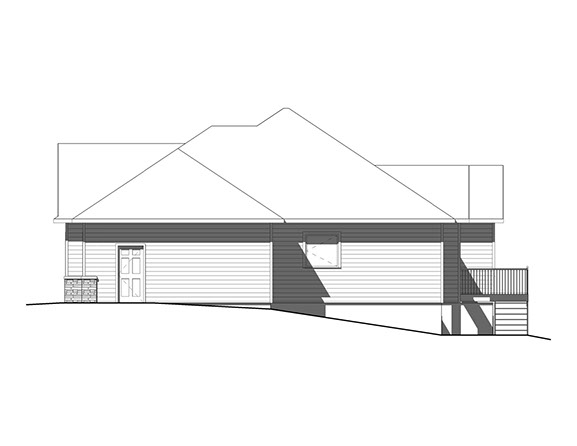

• Exterior Elevations: All exterior elevations noted with roof slopes and general materials.
• Roof Plan: Birds-eye roof plan showing overhang's, hips, valleys & general roof notes
• Sections/Details: Each set will include a typical wall detail, stair sections (if applicable), and any special details pertaining to the plan.
• Door & window schedule:
• Misc.: Interior elevations, cabinet layouts & any other special conditions details if applicable.
• Electrical: A basic electrical plan for each finished living area.

4

3

3,478

1,895

1,538

76'-0"

50'-0"

3

Main level master bedroom, open floor plan, formal dining could be office, main level laundry.
